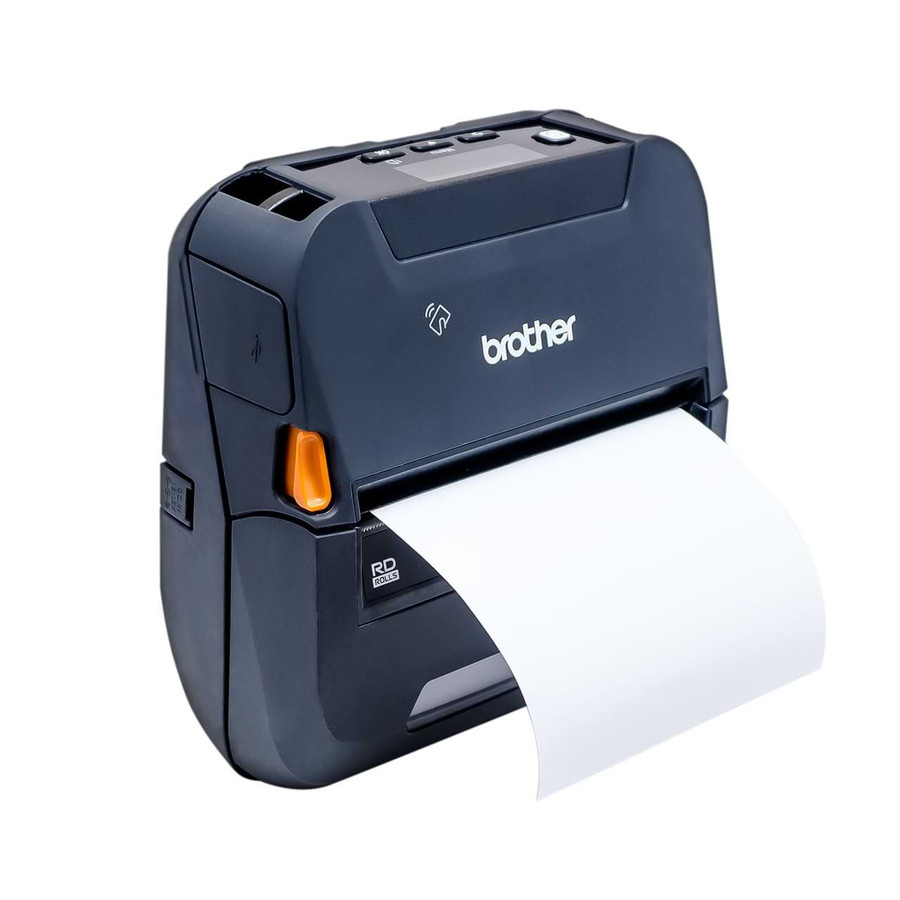

Brother RuggedJet RJ-4230BL 4" Rugged Mobile DT Printer

Calculated at Checkout

Even more powerful and compact than its predecessor, the RuggedJet 4200 series sets a new standard in mobile printing.

This printer kit includes the following:

  • RJ-4230 Mobile Printer
  • Li-Ion Battery
  • Documentation Set
  • Belt Clip
  • Roll Holder Stop
  • Strain Relief Clip

Key Features:

  • Supports paper rolls from 2 to 4 inches in width, ideal for receipts, labels, tags and citations
  • Prints at speeds up to 5 inches per second
  • Up to 203dpi resolution for crystal clear text and graphics
  • Ultra-rugged construction, featuring IP54 certification for dust and moisture and 6.88 ft. drop protection
  • Industry-leading all-day battery life from Smart Li-Ion Battery
  • 14 bitmap and 4 outline fonts (internal), plus downloadable font manager
  • USB 2.0, Serial, and Bluetooth interfaces
  • Compatible with Windows, iOS, and Android operating systems
  • 2-year comprehensive "Premier" warranty
Printing technology Direct thermal
Print resolution 203 dpi
Maximum printing speed 5 ips (127 mm/sec.)
Dimensions (WxHxD) 153 mm x 159 mm x 68 mm
Weight with battery 1.87 lbs (850 g)
User interface 1 LED with Four Buttons, Mono LCD with Back Light
Memory RAM: 256MB / Flash: 64MB (available 42MB)
Max print width 4.09" (104 mm)
Roll width - max/min 4.45" (113 mm) / 1.77" (45 mm)
Max roll diameter 2.28" (58 mm)
Brother Genuine Media Receipts: non-coated, top-coated; weatherproof / labels: top-coated
Sealing certification IP54
Drop protection 6.88' (2.1 m) (under Brother Standard Test Environment)
  • Linear: CODE 39, Intlv 2 of 5, EAN-8, EAN-13, UPC-A, UPC-E, UPC and EAN extension, CODABAR, CODE 128, GS1-128(UCC/EAN 128), Postnet, GS1 Databar (RSS14, RSS14 Stacked, RSS14 Truncation, RSS14 Stacked Omnidirection), GS1 Databar (RSS Limited), GS1 Databar (RSS Expanded, RSS Expanded Stacked), Code93, MSI/Plessey, Intelligent Mail Barcode
  • 2-Dimensional: QR Code (model 1, model 2, micro QR), Maxi code, PDF417 (Standard, Truncate), MicroPDF417, Data Matrix (Square, Rectangular), Aztec Code
OS support
  • Drivers: Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Server 2008/ 2008R2, Windows Server 2012 / 2012 R2/ 2016
  • SDKs: Android™ 4.0.3 or later; iOS® 7 or later
Printer languages Raster, ESC/P, P-touch Template
Emulations ZPL emulation, CPCL (CPCL page print mode / CPCL line print mode)
Interface USB Ver.2.0 (Full Speed) (mini-B type), Bluetooth Ver. 4.2, MFi, NFC Paring
Resident fonts 14 Bitmap, 4 Outline Fonts (Internal), Downloadable with Font Manager
Battery life 300 charge cycles (to 50% battery capacity)
Charging time 4 Hours
Power options Rechargeable Li-ion Smart Battery, AC adapter, DC vehicle adapter
Warranty 2-year Premier
2-year "bumper-to-bumper" warranty serviced by Brother Mobile Solutions
